Measuring Instruments

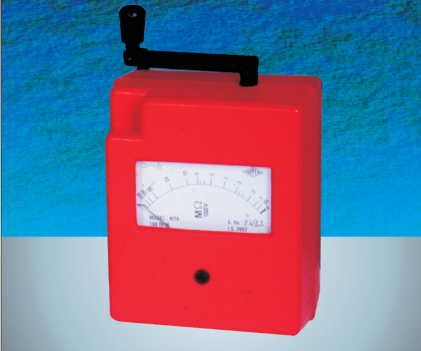

NIPPEN Analog Insulation Tester Hand cranking generator type in ABS Body or diecast aluminium housing with voltage rating of 50 to 5000v in various M ohm ranges are available. They comply with IS-2992 with a class of accuracy of 5% of the indicated value.A noiseless generator produces the high voltage DC in conjunction with the solid state circuit.

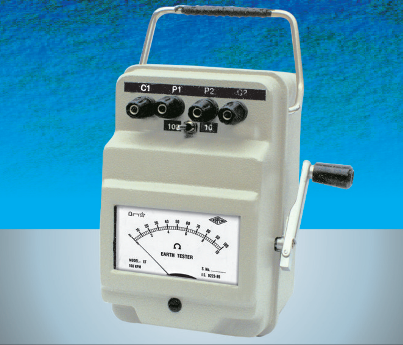

NIPPEN Analog Earth Tester Hand cranking type measures the earth electrode resistance,earth continuity,neutral and earth resistivity of electrical installation.These are available in polycarbonate or die cast Aluminium housing. They comply with IS-9223.A noiseless hand cranking generator in conjunction with solid state circuit is used for the purpose of measurement the earth resistance.The measuring accuracy is 5%

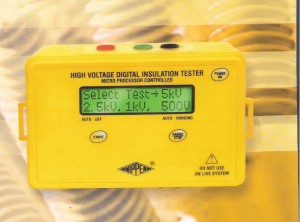

Nippen High Voltage Digital Insulation Tester HV50250is a compact light weight This insulation tester is equipped with selectable test voltages of 500V,1000V 2500V & 5000V DC available with resistance range of 25G ohms to 250G ohms combining the ranges of various conventional hand cranking insulation tester.The instrument withstand extreme environmental condition. The instrument is housed in robust moulded ABS case for shock resistance & its dust resistant construction keep out contaminants for high reliability. It operates from an internal battery. Vibration meter measures Velocity, Acceleration, Displacement, RPM, and Frequency.
“WACO” Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurements of ground resistivity. It can also be used for measurements of the other low regular and liquid resistance. This Instrument finds wide application for testing eathing installations in power based industries, telecommunication net-works and electrical traction systems, etc.

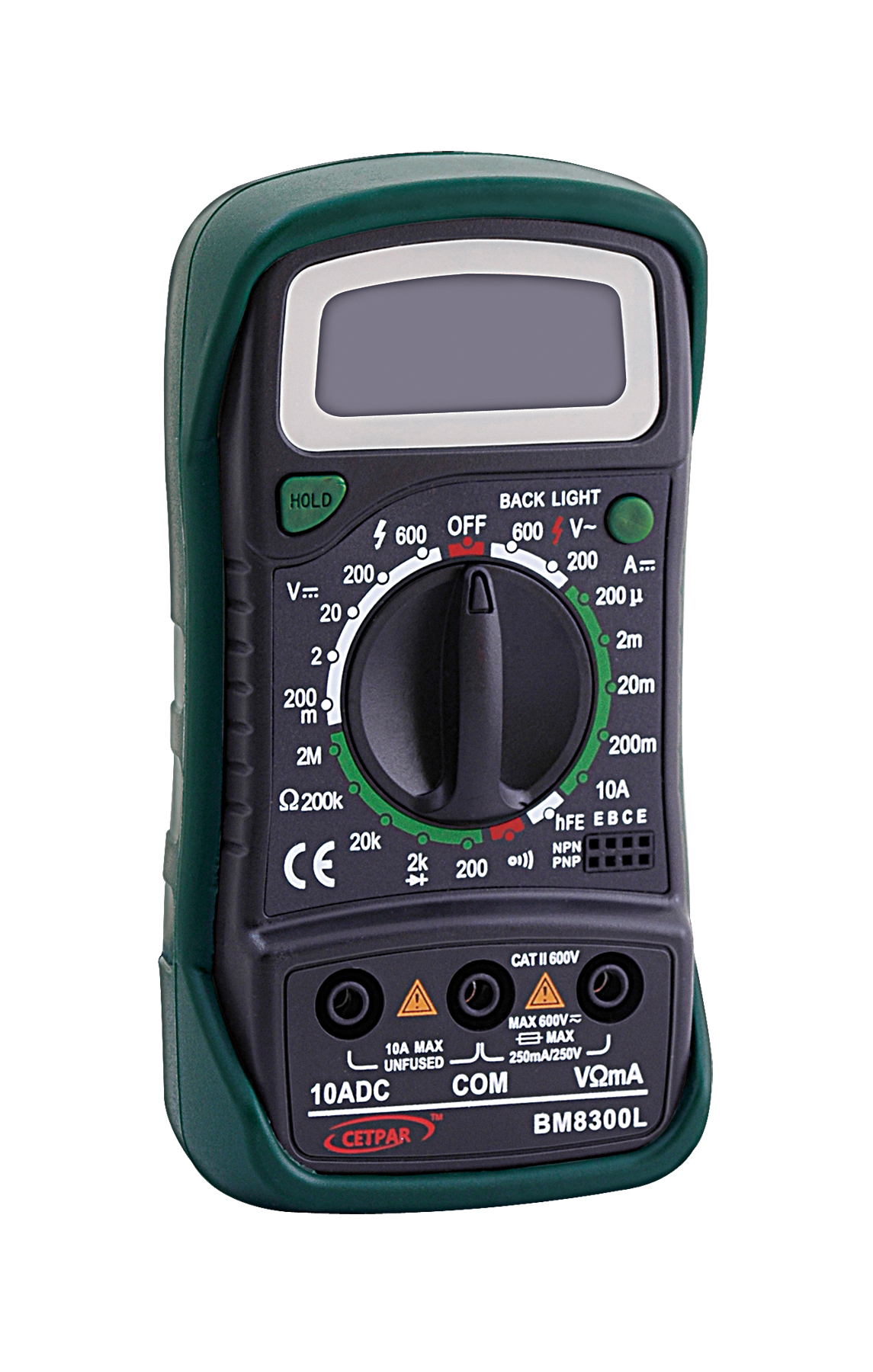

CETPAR Digital Multimeter 3 1/2 digit Max display 1999 MODEL BM8300L Special Functions

  • Transistor Test
  • Diode
  • Continuity Buzzer
  • Back Light
  • Over Load Protection
  • Data Hold

General Characteristics

  • Product Size: 138x69x31mm
  • Power: 1x9v
  • Standard Accessories: Packing Carton, Manual, Battery
 BM-8300L-final copy

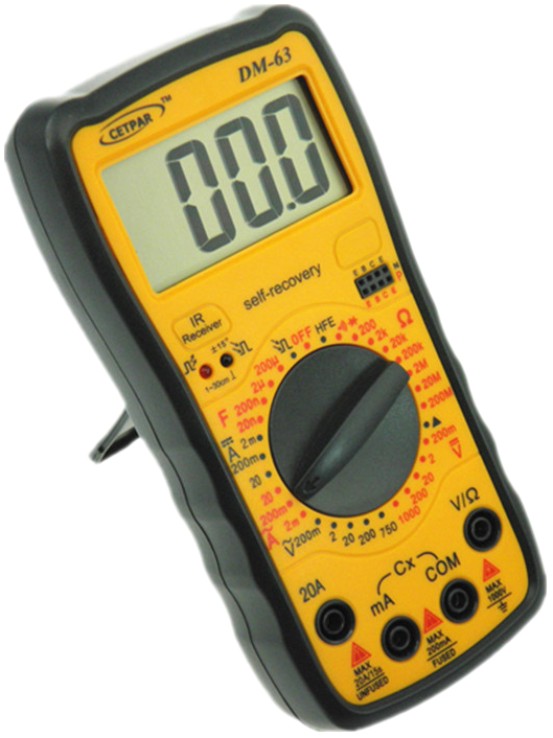

CETPAR Digital Multimeter 3 1/2 digit Max display 1999 MODEL DM-63Special Functions

  • Transistor Test
  • Battery Diode
  • Continuity Buzzer
  • Low Battery Display
  • auto Power-off
  • Negative Polarity Display
  • Infrared Data Detection
  • Fire-Wire identification
  • Self-recovery Protection
  • sampling Frequency

General Characteristics

  • Product Size: 66x381mm
  • Power: 1x9v
  • Standard Accessories: Packing Carton, Handheld Bag, Manual, Battery

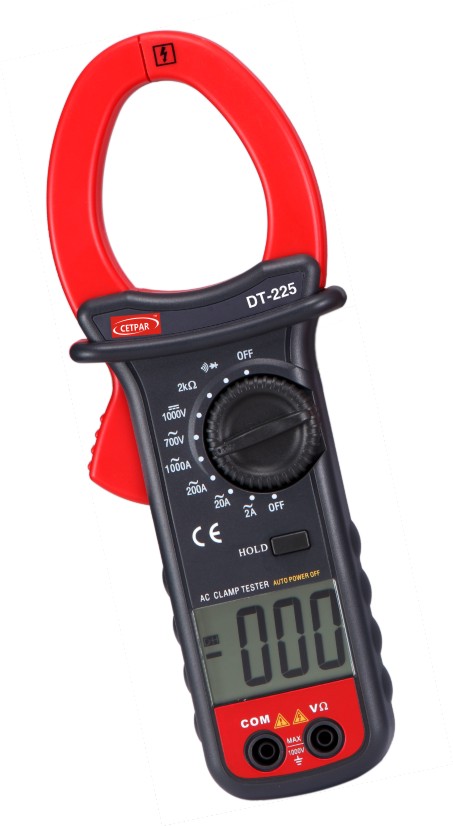

CETPAR Digital Clamp Meter 3 1/2 Digit Max Display 1999 Model DT-225
Special Functions

  • Diode
  • Continuity Buzzer
  • Low Battery Display
  • Data Hold
  • Auto Power-Off
  • Overload Protection
  • Sampling Frequency
  • Max Distance between Clamps

General Characteristics

  • Product Size: 249x89x38mm
  • Power: 1x9v or 6F22
  • Standard Accessories: Packing Carton, Handheld Bag, Manual, Battery

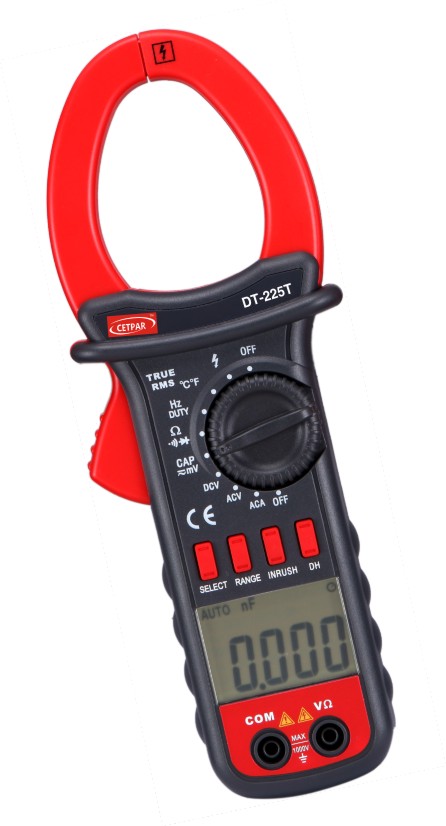

CETPAR Digital Clamp MeterAC True RMS 3 3/4 Digit Max Display 3999 Model DT-225TSpecial Functions

  • Diode
  • Continuity Buzzer
  • Low Battery Display
  • Data Hold
  • Auto Power-Off
  • Inrush Current
  • Auto Range
  • NCV
  • Overload Protection
  • Sampling Frequency
  • Max Distance between Clamps

General Characteristics

  • Product Size: 249x89x38mm
  • Power: AA1.5v x 2
  • Standard Accessories: Packing Carton, Handheld Bag, Manual, Battery

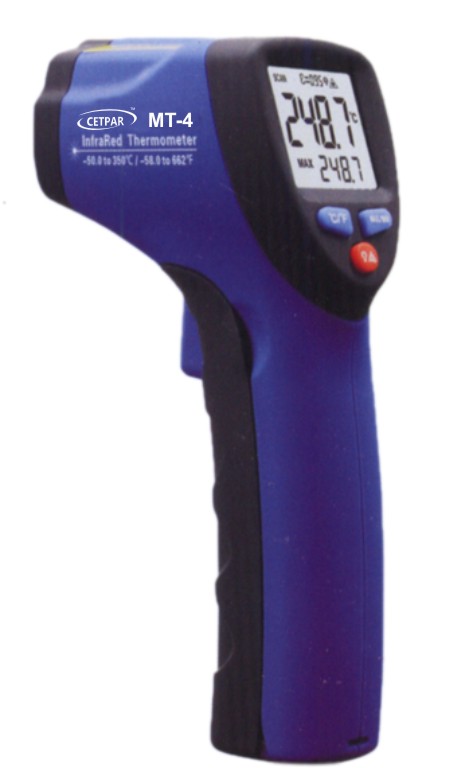

CETPAR MT-4 INFRARED THERMOMETER 13:1 Compact MT Thermometer with wide Temperature Range MODEL: MT-4
Features:

  • Fast and easy measurement
  • Precise non-contact IR temperature measurement
  • Built-in laser pointers increase the target accuracy
  • Max/Min record
  • LCD display with backlight
  • Automatic range selection Resolution 0.1 C/F
  • Data Hold
  • Auto Power OFF

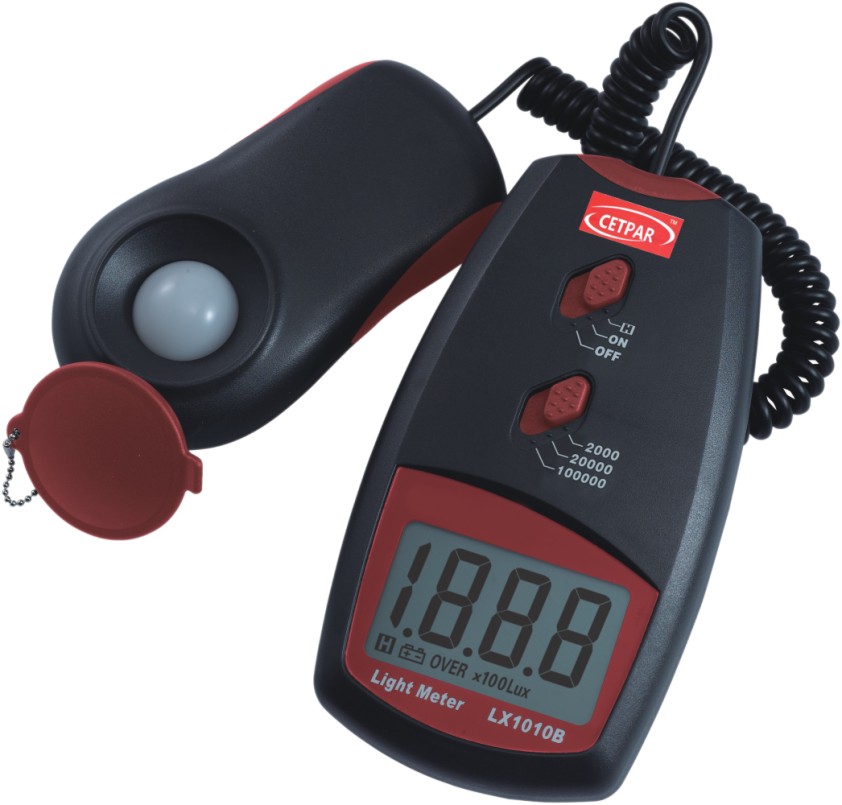

CETPAR DIGITAL LUX METER MODEL: LX1010B

  • Ranges: 1~100,000Lux.(3 Ranges)
  • 20,000 Lux range: readingx10
  • 100,000 Lux range: readingx100
  • Resolution: 1Lux
  • Repeatability:+2%
  • Sampling time: 0.5 second
  • Reading locked function
  • Photo detector: one silicon photo diode with filter.
  • Dimension: 106x57x26mm(photo detector)
    130x72x30mm(meter body)

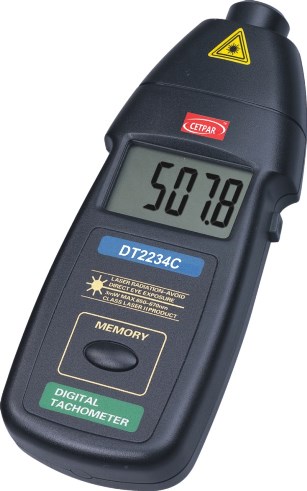

CETPAR PHOTO TACHOMETER (LASER) MODEL: DT2234C

  • Accuracy: ±(0.05%+1digit)
  • Samplig Time:0.5sec(over 120RPM)
  • Eange Select: Auto-Switch
  • Memory: Max. value, Min. value, Last value
  • Measuring Range: 2.5-99.999RPM
  • Resolution: 0.1RPM(2.5-999.0RPM)
  • 1RPM(over 1,000RPM)
  • Detecting Distance:50~500mm
  • Power: 3×1.5VAAA battery
  • Time Base: 6MHz Quartz crystal
  • Power Consumption: Approx 40mA
  • Dimension: 184Lx76Wx30H(mm)

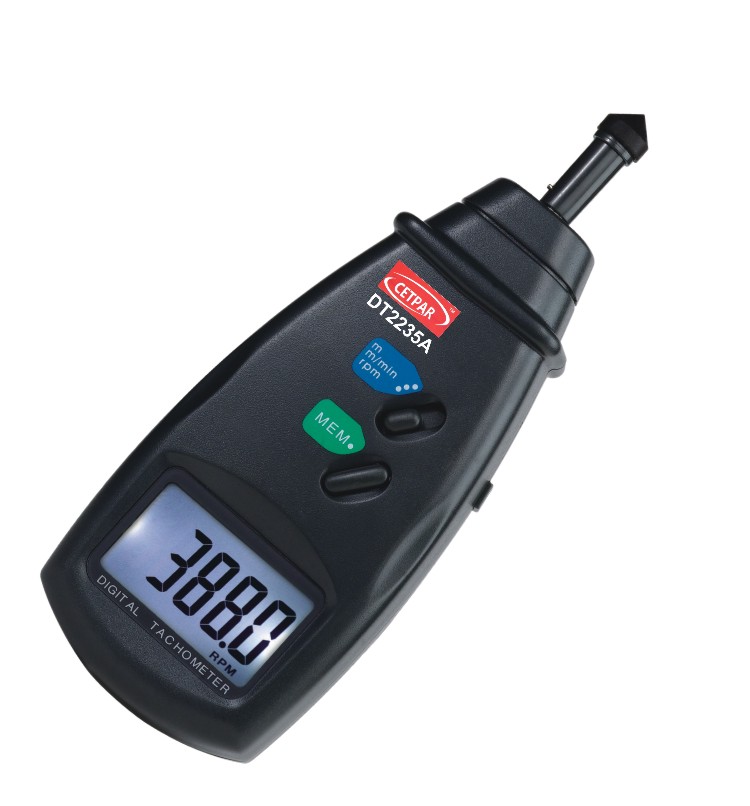

CETPAR CONTACT TACHOMETER SURACE SPEED METER MODEL: DT2235A

  • Accuracy: ±(0.05%+1digit)
  • Sampling Time:0.5sec(over 120RPM)
  • Range Select: Auto-Switch
  • Memory: Max. Value, Min. value, Last value Can store 96s data
  • Power Consumption: Approx 45mA
  • Time Base: 6MHz Quartz crystal
  • Resolution:Contact tach: 0.1RPM(0.5~999.9RPM)1RPM(over1000RPM)
  • SurfaceSpeed:0.01m/min(0.05~99.99m/min)0.1m/min (100m/min)
  • Contact length: 0.02m(0.05~99999m)Power:3×1.5V AA battery
Digital Clamp MeterAC/DC True RMS 3 3/4 Digit Max Display 3999 MODEL DT-225D Special Functions:

  • Diode
  • Continuity Buzzer
  • Low Battery Display
  • Data Hold
  • Auto Power-off
  • Inrush Current
  • Overload Protection
  • Sampling Frequency:3times/s
  • Max Distance between Clamps:52mm

General Characteristics:

  • Product Size:249×89×38mm
  • Power:9V x 1 6F22
  • Standard Accessories:Packing Carton?Handheld Bag, Manual ,Battery
 DT-225D-FINAL copy

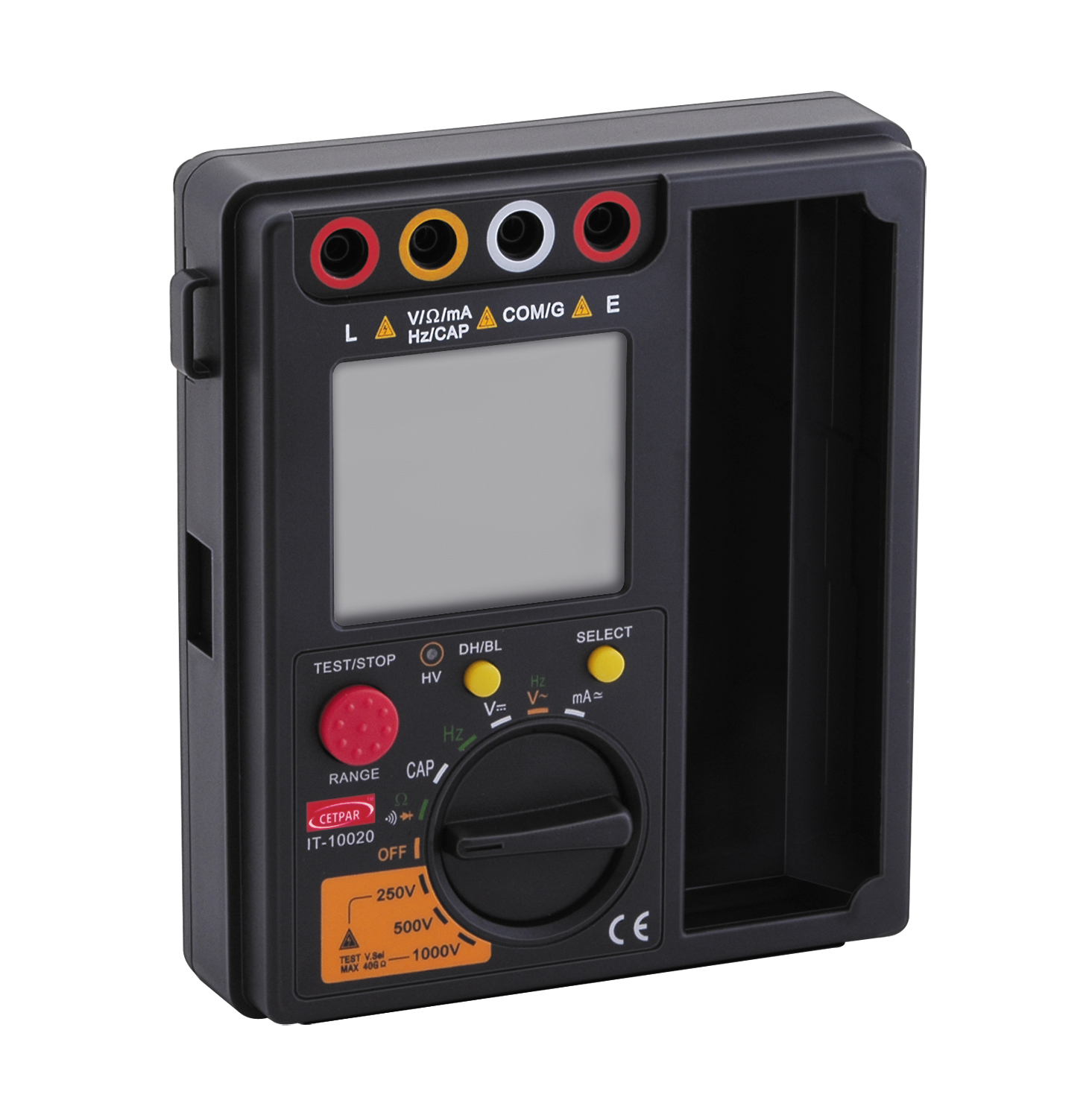

Digital Insulation Resistance Tester With Multimeter Functions  MODEL IT-10020 Special Functions:

  • Diode
  • Continuity Buzzer
  • Back Light
  • Low Battery Indication
  • Overload Protection
  • Short Circuit:1.5mA
  • Measurement Time:1/2/10min
  • Sampling Rate:2times/s

General Characteristics:

  • Product Size:170×156×64mm
  • Power:AA1. 5V x 6
  • OperatingTemperature:0`C-40`C,<75%R.H.
  • Maximum Power Consumption:4.5W
  • Storage Temperature:10`C-60`C, <80%R.H.
 IT-10020-OK copy

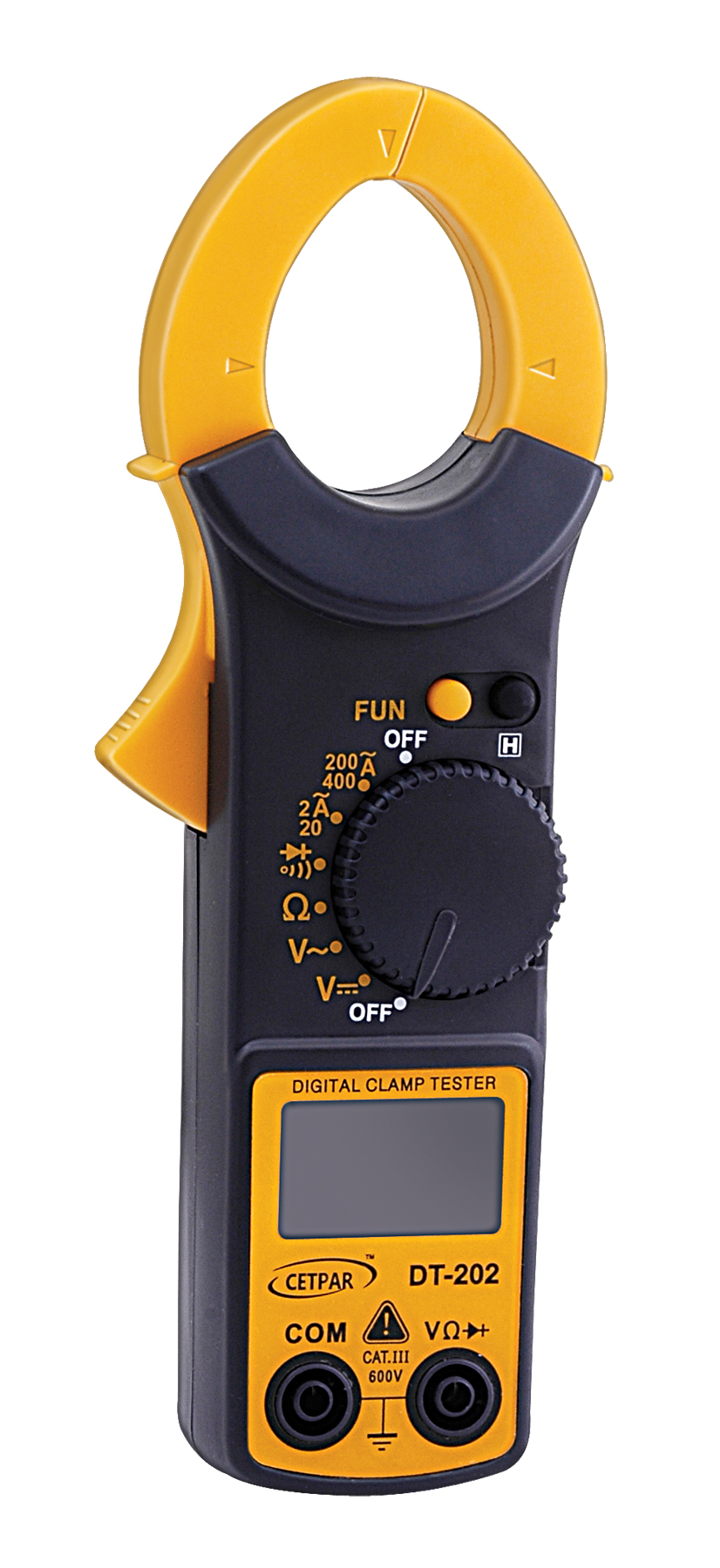

Digital Clamp Meter AC 3 1/2 Digit Max Display 1999  MODEL DT-202 Special Functions:

  • Diode
  • Continuity Buzzer
  • Low Battery Display
  • Data Hold
  • Auto Power-off
  • Overload Protection
  • Sampling Frequency:3times/s
  • Max Distance between Clamps:30mm

General Characteristics:

  • Product Size:182×55×30mm
  • Power:2 X 1.5V AAA Battery
  • StandardAccessories:PackingCarton,Batteries,Test Leads,Manual
 DT-202-final copy

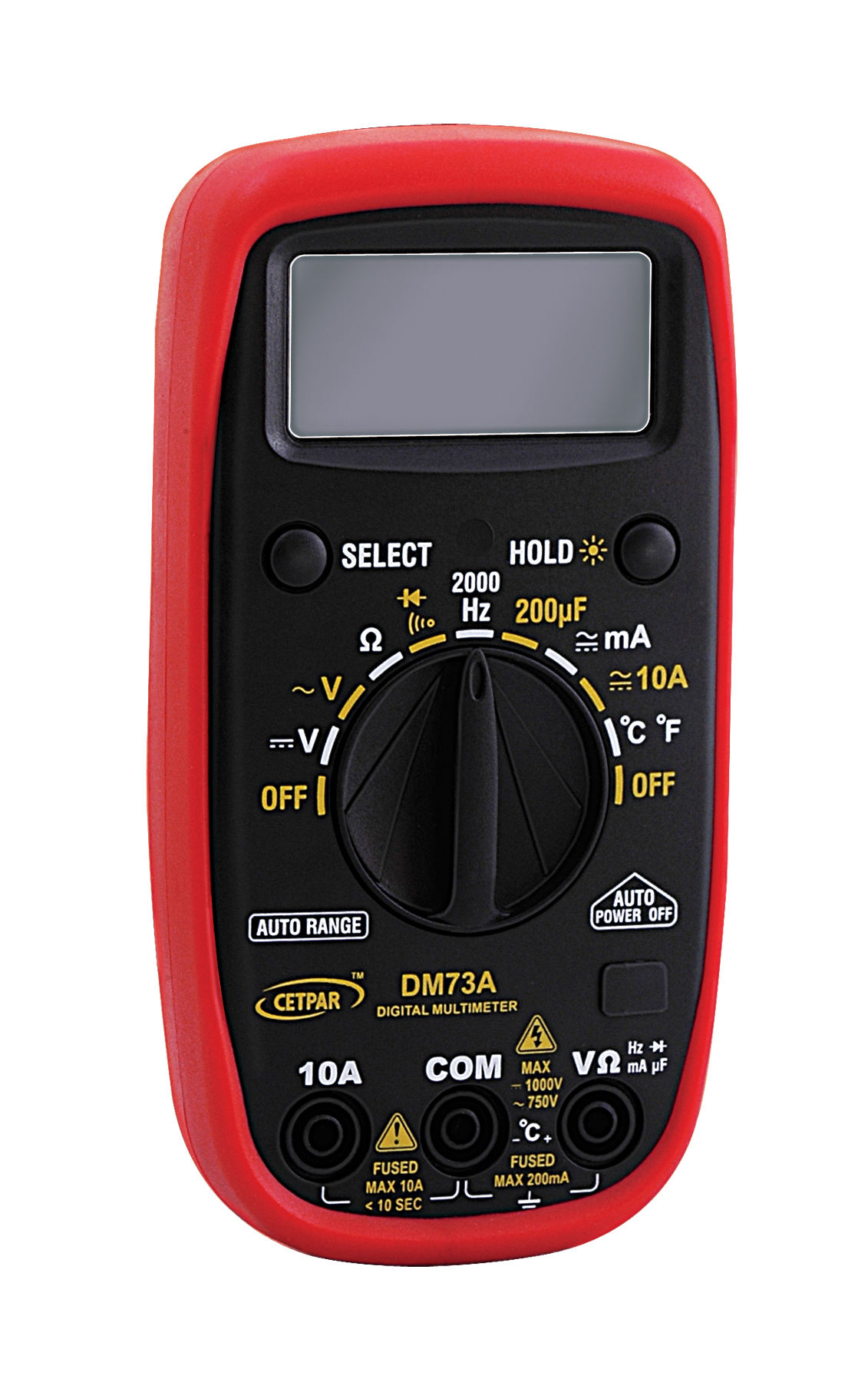

AUTO RANGE DIGITAL MULTIMETER MODEL DM-73A:

    • Diode
    • Resistance
    • AC/DC Voltage
    • AC/DC Current
    • 1999 LCD Display
    • Capacitance

General Characteristics:

    • Temperature
    • Frequency
    • Continuity
    • Low Battery
    • indication
    • Back light Display
 DM-73A-final copy

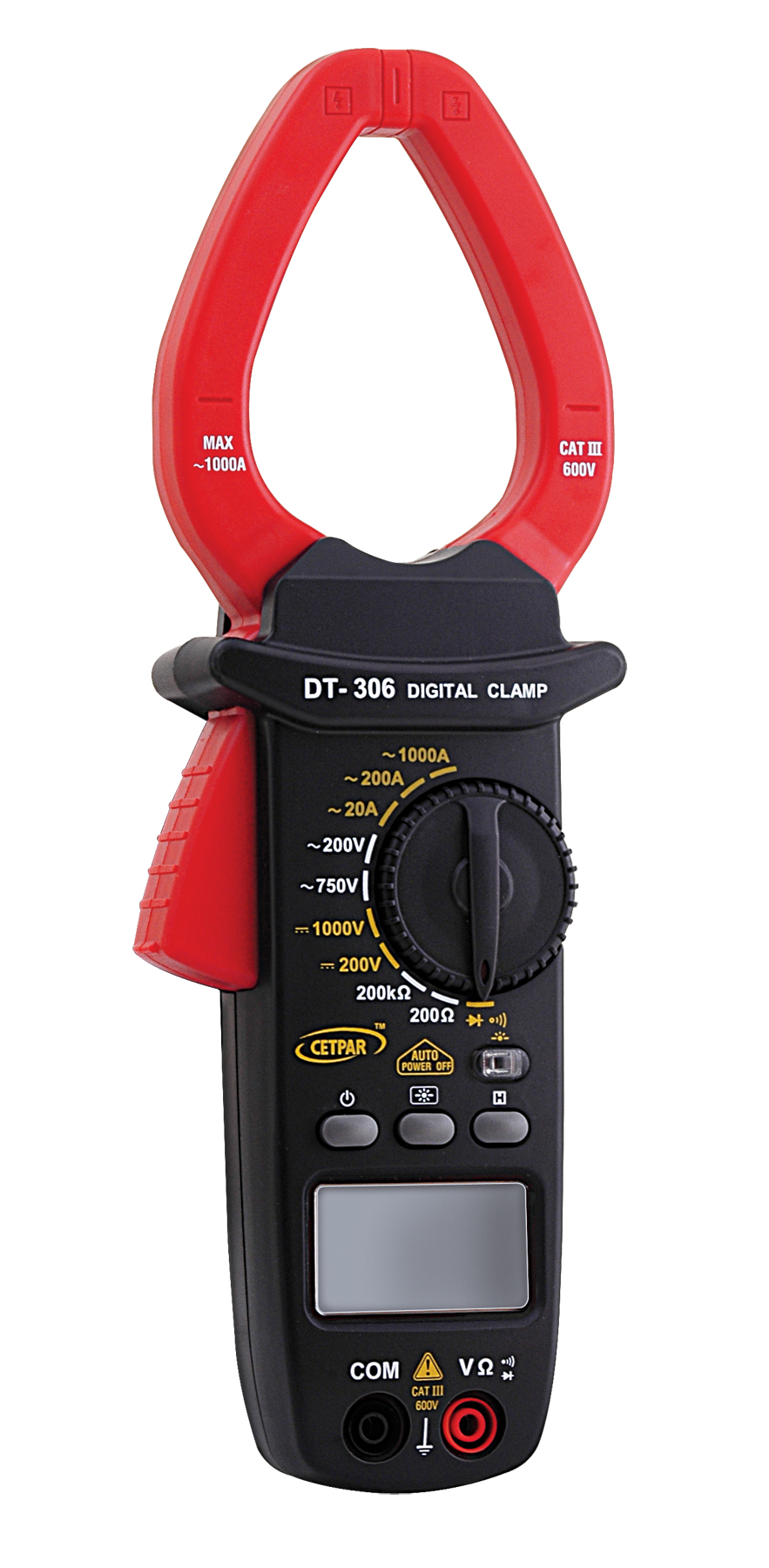

1000A AC DIGITAL CLAMP METER MODEL DT-306:

  • Diode
  • Resistance
  • AC/DC Voltage
  • AC/DC Current
  • 1999 LCD Display
  • Continuity
  • Data Hold

General Characteristics:

  • Auto power off
  • Low battery indication
  • LED Light
  • Back light
  • Jaw Size 56MM
 DT-306-final copy

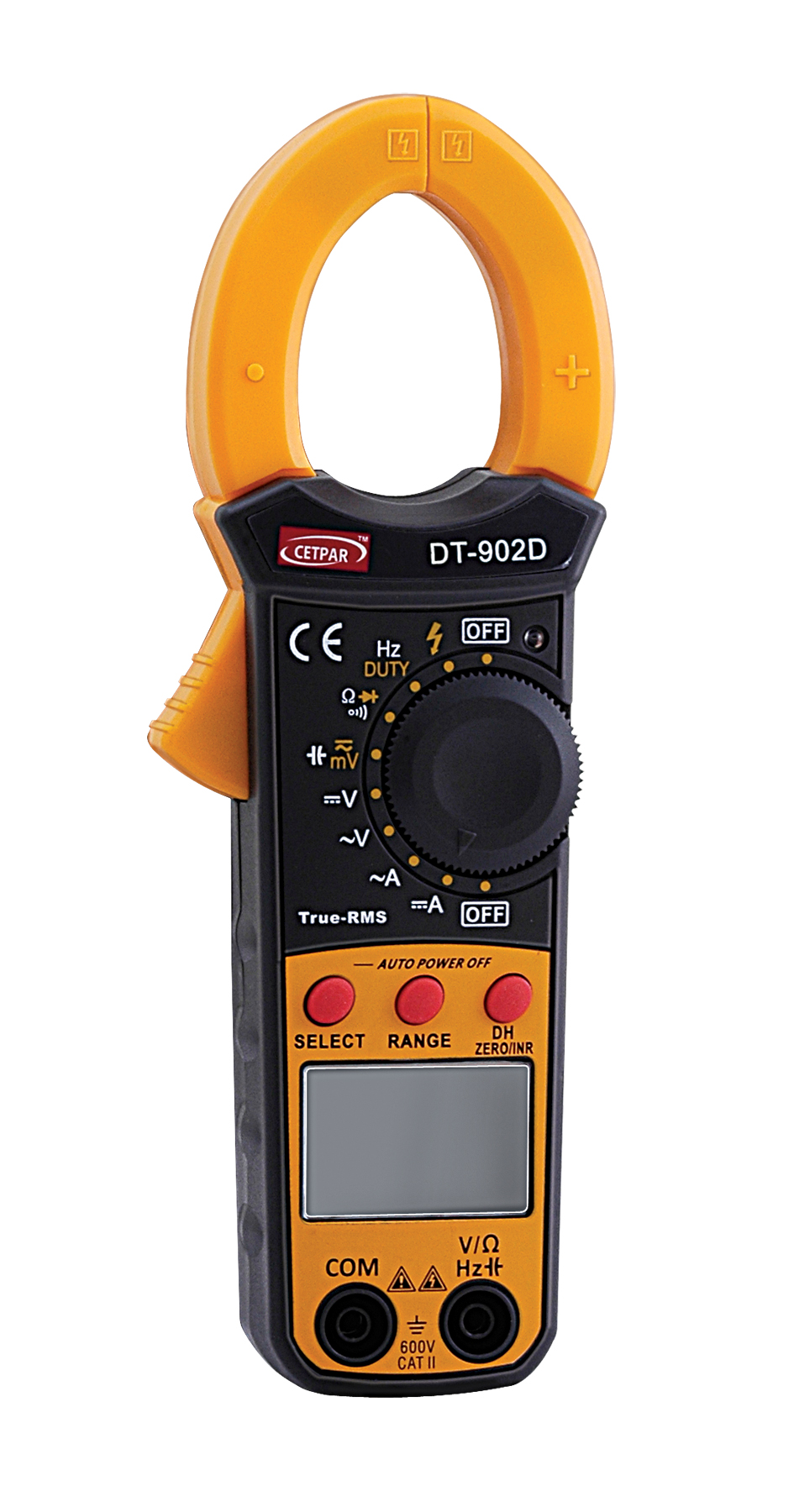

600A AC/DC TRMS DIGITAL CLAMP METER MODEL DT-902D:

  • Diode
  • Duty cycle
  • Capacitance
  • Resistance
  • AC/DC Voltage
  • AC/DC Current
  • 3999 LCD Display
  • Frequency

General Characteristics:

  • Continuity Buzzer
  • Data Hold
  • Auto Range
  • Low battery display
  • Inrush Current,NCV
  • Auto power off
  • Over load protection
  • Jaw Size 30MM
 DT-902D-final copy
