Multi Function Meters

SYNTRON – Multifunction meter type 3033

Backlit 16 X 1 LCD Display.
Micrcontroller based.
True RMS.
Measures V, A, Hz, KVA, KW, PF, Kvar, Kwh, KVAh.
Accuracy Class : 1.0
Comact Standard DIN Flush Mounting.
Size : 96mm X 96mm X 80mm.

SYNTRON – VAF Meter type DM3060

True RMS 4 Digit Measurement of Voltage & Current.
CT/PT ratio site programable
Conviniently accessed DIP Switch at Rear for C.T Selection.C.T Ratio selectable from 30.0/5A to 1500/5A.
Flicker free bright 14.2 mm LED Display.
Auto Scroll Facility.
Accuracy Class : 1.0
Comact Standard DIN Flush Mounting.
Size : 96mm X 96mm X 85mm.

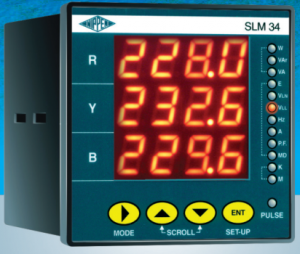

NIPPEN MFM Meter type SLM34

FEATURES:

True RMS measurements & 4 quadrant operation
CT/PT ratio site programable
3 phase STAR/ DELTA jumper settable
Monitor export & import of energy
Monitor 8 MD values with date & time
Aux. Supply: 230V or 110V AC +/-20%
Voltage Input: 80V – 500V AC
Current Rating: 5A or 1A AC
Starting Current: 0.2% of rated current
ACCURACY 1.0/0.5(optional)
Front: 96 x 96 (82mm depth)
Measures V,A,Hz,KW,KVA,KVAr,KWh,KVAh,KVArh,MD

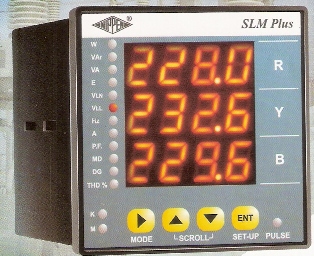

NIPPEN MFM METER TYPE SLM PLUS

FEATURES:

True RMS measurements & 4 quadrant operation
Simultaneous sampling of volt & Amps
Auto scaling into kilo, Mega, Giga & decimal point
THD for Voltage & Current phase wise & Total
High & Low recording of events like A,V,HZ,W,VA,VAr,PF
% Unbalance of V & A of all phases
Old Energy Register & Load hrs
Monitors export & import of energy
Demand (kVA or kW) Rising / forecast with TOU.
User programmable demand type & demand interval (1min to 60 min, Std.-30min)
Dual Source measurement (EB& DG)
Neutral current measurement
Data logging Facility
Upgradable to higher version
Register Map user programmable
Aux. Supply: 230V or 110 V AC +_20%
Voltage Input: 80V – 500V AC
Current Rating: 5A or 1A AC
ACCURACY 1.0%/ 0.5% (optional)
Measures V,A,Hz,KW,KVA,KVAr,KWh,KVAh,KVArh,MD,HARMONICS

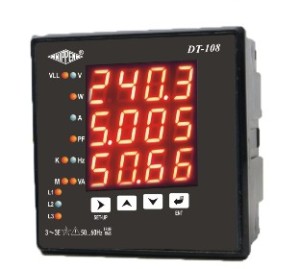

NIPPEN MFM Meter type DT-108DT108

FEATURES:

Suitable for 3Phase & 1phase System
True RMS readings,Manual & Auto Scrolling
CT ratio site adjustable thru DIP(5A-2000A)
Direct reading without MF,Phase reversal indication.
Current Rating: 5A or 1A AC
Aux. Supply: 230V or 110V AC +/-20%
Voltage Input: 80V – 500V AC
ACCURACY 1.0/0.5(optional)
Front: 96 x 96 (82mm depth)
Measures V,A,Hz,PF,KW,KVA,KWH

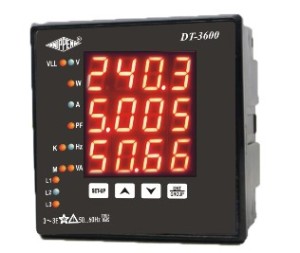

NIPPEN MFM METER TYPE DT-3600DT 36



FEATURES:

True RMS measurements and perfect linear response
Finger proof self-lifting terminals for connection (optional)
Manual / Auto mode
User programmable, multiple parameter measurement
CT ratio user settable.
Display of Load Hours, RPM
Wide range of Auxiliary suppliesDT 3600
Easy access to set-up using scroll keys
A, V, PF in all phases can be viewed simultaneously
Input voltage 80V-500VAC
Input Current 5A or 1A
Aux Supply 230V/110VAC+/-10%
System 3 Phase/ 4 Wire or 3 Phase/3 Wire or 1 Phase/2 Wire
Measures V,A,Hz,PF,KW,KVA,RPM
