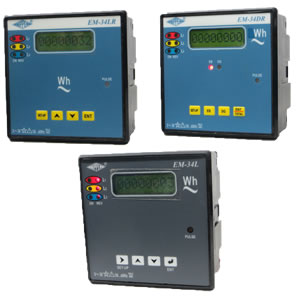

NIPPEN KWH METERS TYPE EM34/EM34L/EM34D
FEATURES:
CT ratio site selectable
Self powered(no need of seperate Aux Supply)
Anti Tamper features,Reverse current & Phase reversal indication
Positive energy accumulation even with CT secondary reversed
Display Counter type model EM34 & LCD type model EM34L/EM34D
Single meter records both EB & DG consumption in EM34D model
ACCURACY Class 1.0
Size 96mmx96mm(82mm Depth)
FEATURES:
6 Digit Counter type Display.
True RMS CT PT Operated.
Three Phase Four Wire System.
Accuracy Class 1.0
Isolated pulse output provided.
Size : 96mm X 96mm X 80mm
SYNTRON KWH METER TYPE 3023
FEATURES:
Backlit 16 X 1 LCD Display.
Microcontroller based.
Three Phase Four Wire System.
C.T Primary Site Selectable.(0-5000A).
Range of reading : 0 – 99999999.9 KWh.
Accuracy Class 1.0S as per IS13779.
Compact Standard DIN Enclosure.
Size : 96mm X 96mm X 80mm
SYNTRON KWH METER TYPE 3024
FEATURES:
Bright LED 7 Segment 8 Display.
Three Phase Four Wire System.
Microcontroller based.
C.T Primary Site Selectable (0-5000A)
Range of Reading : 0 – 9999999.9 KWh.
Accuracy Class 1.0S as per IS13779.
Compact Standard DIN Enclosure.
Size : 96mm X 96mm X 80mm.
